I should be able to do voice with this hardware now, right?





System Bootstrap, Version 12.4(13r)T, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 2006 by cisco Systems, Inc.
PLD version 0x10
GIO ASIC version 0x127
c2801 platform with 393216 Kbytes of main memory
Main memory is configured to 64 bit mode with parity disabled


Readonly ROMMON initialized

program load complete, entry point: 0x8000f000, size: 0xcb80
program load complete, entry point: 0x8000f000, size: 0xcb80

program load complete, entry point: 0x8000f000, size: 0x202624c
Self decompressing the image : ################################################################################################################################################################################################################################################################################################################################################################################################ [OK]

Smart Init is enabled
smart init is sizing iomem
  ID            MEMORY_REQ         TYPE
                0X003AA110 public buffer pools
                0X00211000 public particle pools
                0X00020000 Crypto module pools
                0X00120000 VPM buffer pools
0X058A          0X00000000 UNKNOWN Card in slot 1
0X003A          0X00000000 Card in slot 2
                0X000021B8 Onboard USB

If any of the above Memory Requirements are
"UNKNOWN", you may be using an unsupported
configuration or there is a software problem and
system operation may be compromised.

Allocating additional 27896858 bytes to IO Memory.
PMem allocated: 364904448 bytes; IOMem allocated: 37748736 bytes

              Restricted Rights Legend

Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.

           cisco Systems, Inc.
           170 West Tasman Drive
           San Jose, California 95134-1706



Cisco IOS Software, 2801 Software (C2801-ADVENTERPRISEK9-M), Version 12.4(11)T, RELEASE SOFTWARE (fc2)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2006 by Cisco Systems, Inc.
Compiled Sat 18-Nov-06 17:56 by prod_rel_team
Image text-base: 0x6008FA68, data-base: 0x63600000


This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.

A summary of U.S. laws governing Cisco cryptographic products may be found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

If you require further assistance please contact us by sending email to
export@cisco.com.

Installed image archive

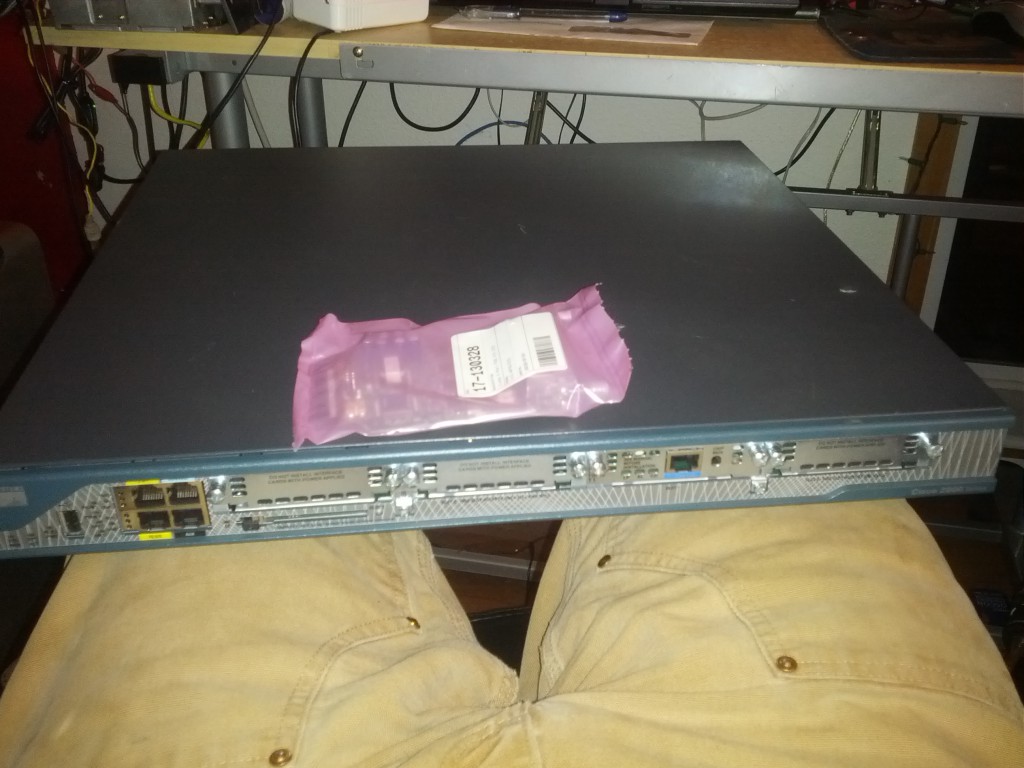

Cisco 2801 (revision 7.0) with 356352K/36864K bytes of memory.
Processor board ID FTX150804QM
2 FastEthernet interfaces
1 Virtual Private Network (VPN) Module
4 Voice FXS interfaces

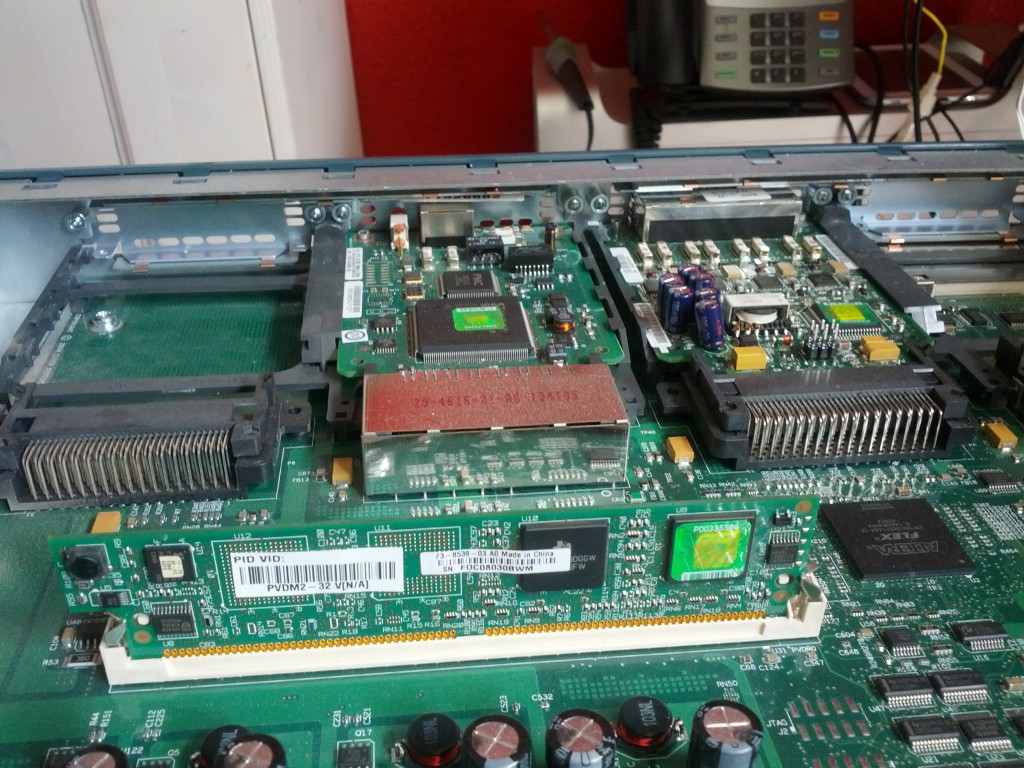

2 DSPs, 32 Voice resources
DRAM configuration is 64 bits wide with parity disabled.
191K bytes of NVRAM.
509544K bytes of ATA CompactFlash (Read/Write)
